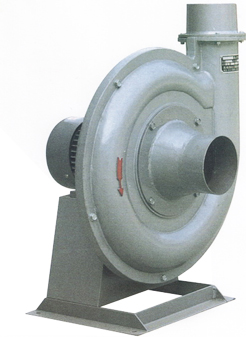

| 5-27 and 5-32 series medium-pressure centrifugal fans |
|
|
| |
| They are designed based on the prototype of Japan’s NK500&200 and according to product structure of China and customer requirements. They are characterized by stable operation, low noise, high efficiency, compact structure, beautiful appearance, etc. The spiral case made of aluminum alloy is light and has a good anticorrosion property. Fitted with an anti-explosion motor, they will be used as anti-explosion fans. This series of fans may be used for cooling of plastic film blasting, and forced ventilation in the light textile and petrochemical industries. |
| |
| 5-27 series centrifugal fan |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
Noise dB(A)
|
weight(kg)
|
|
5-27-2.8A
|
0.55
|
2900
|
240-725
|
1330-400
|
<70
|
18.1
|
|
5-27-3A
|
0.75
|
2840
|
250-950
|
1650-600
|
<72
|
30.4
|
|
5-27-3.4A
|
1.1
|
2840
|
260-1320
|
1900-1050
|
<72
|
37.6
|
|
5-27-3.8A
|
1.5
|
2840
|
288-1476
|
2400-1300
|
<75
|
48
|
|
5-27-4A
|
2.2
|
2840
|
330-1750
|
2650-1430
|
<78
|
54.5
|
|
5-27-4.1A
|
3
|
2860
|
380-2500
|
2850-1500
|
<80
|
76
|
|
5-27-4.4A
|
4
|
2880
|
632-3150
|
3300-1870
|
<82
|
93
|
|
| 5-32 series centrifugal fan |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow m3/h
|
Pressure Pa
|
Noise dB(A)
|
|
5-32-3.8A
|
1.5
|
2840
|
270-1200
|
2100-1000
|
<75
|
|
5-32-4A
|
2.2
|
2840
|
315-1600
|
2350-1200
|
<78
|
|
5-32-4.1A
|
3
|
2880
|
360-2300
|
2650-1400
|
<80
|
|
5-32-4.4A
|
4
|
2900
|
504-2880
|
2900-1700
|
<82
|
|
