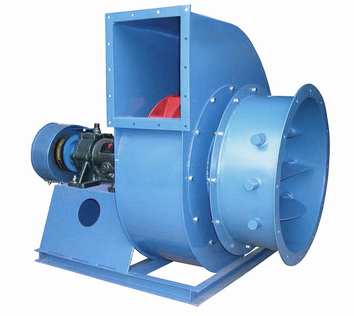

| Y5-48 centrifugal draught fans for boilers |
|
|
| |
| It is designed for 1-20t/h various natures of coal and industrial boilers equipped with a smoke and dust elimination device. It is applied to all equipment that has equivalent inlet conditions and corresponding performance. The maximum temperature shall not exceed 250℃. An 85% or above 85% (efficiency) dust collection device must be arranged in front of the draught fan in order to reduce dust content in smoke that is to enter the fan and prolong service life of fan. |
| |
|
Machine No.
|
Motor Power Kw
|
Rotation Speed r/min
|
Volume Flow
m3/h
|
Pressure
Pa
|
|
4C
|
5.5
|
3550
|
2932-5564
|
2221-1501
|
|
4
|
3150
|
2602-4937
|
1746-1180
|
|
3
|
2800
|
2313-4388
|
1377-932
|
|
2.2
|
2500
|
2065-3918
|
1097-742
|
|
5C
|
11
|
3150
|
5304-9851
|
2819-1913
|
|
7.5
|
2800
|
4715-8757
|
2223-1509
|
|
5.5
|
2500
|
4210-7818
|
1769-1202
|
|
4
|
2240
|
3772-7005
|
1419-964
|
|
6.3C
|
22
|
2800
|
9432-17516
|
3545-2403
|
|
15
|
2500
|
8421-15639
|
2819-1913
|
|
11
|
2240
|
7546-14013
|
2259-1533
|
|
7.5
|
2000
|
6739-12511
|
1798-1221
|
|
8C
|
30
|
2000
|
13794-25619
|
3323-2253
|
|
22
|
1800
|
12415-23057
|
2686-1823
|
|
15
|
1600
|
11035-20495
|
2118-1438
|
|
11
|
1400
|
9656-17933
|
1619-1100
|
|
10C
|
75
|
1800
|
22250-44634
|
4483-2958
|
|
55
|
1600
|
19778-39674
|
3531-2332
|
|
37
|
1400
|
17305-34715
|
2696-1782
|
|
22
|
1250
|
15451-30995
|
2145-1419
|
|
12.5C
|
110
|
1400
|
33800-67803
|
4234-2794
|
|
75
|
1250
|
30179-60538
|
3365-2223
|
|
55
|
1120
|
27040-54242
|
2696-1782
|
|
37
|
1000
|
24143-48431
|
2145-1419
|
|
